Mandatory Morning Maintenance

Printable PDF

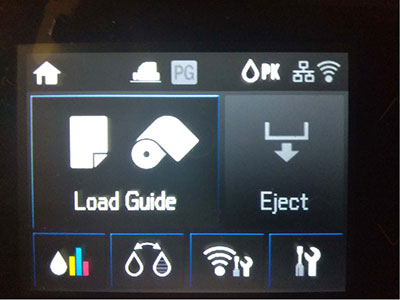

1. Power your machine on and bring it to the load guide screen.

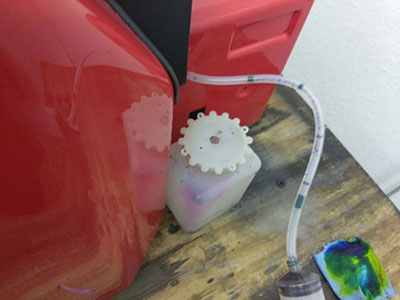

2. Using your syringe, pull about 25ml of ink from the waste ink line. The waste ink should be a dark gray/green color. Then empty any waste ink from waste tank. Then reinsert the line into the waste tank.

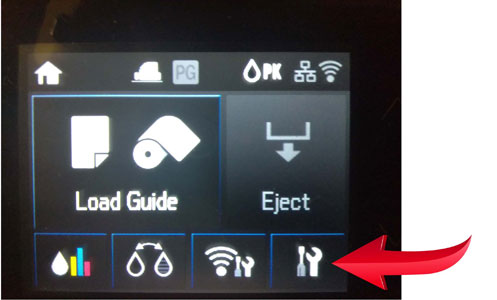

3. Tap the Setup icon

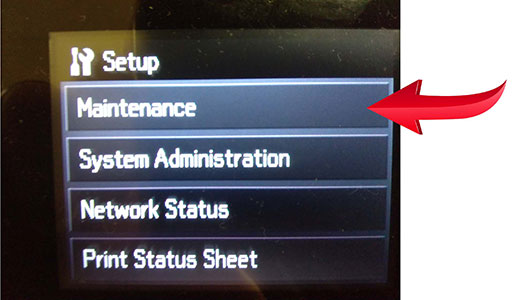

4. Tap the Maintenance icon

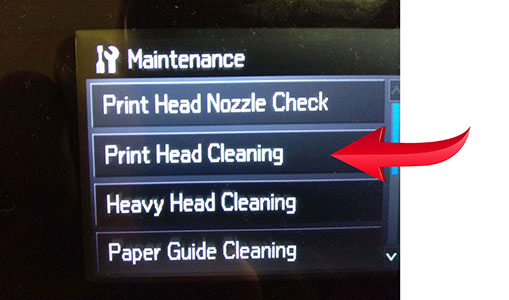

5. Tap the Print Head Cleaning icon

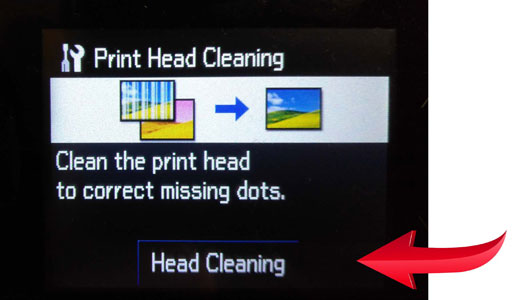

6. Tap the Head Cleaning icon. Allow cycle to complete then tap Done. If necessary, repeat process.
