Printing Inline Colored Shirts

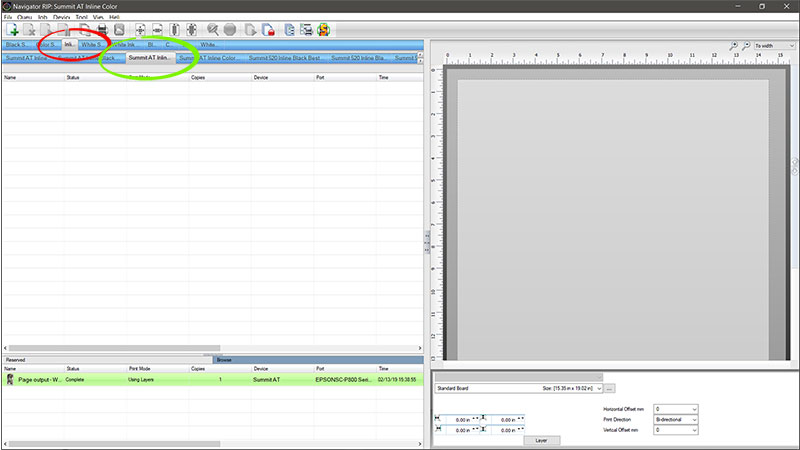

1. First make sure you are on the correct Queue and Sub-Queue.

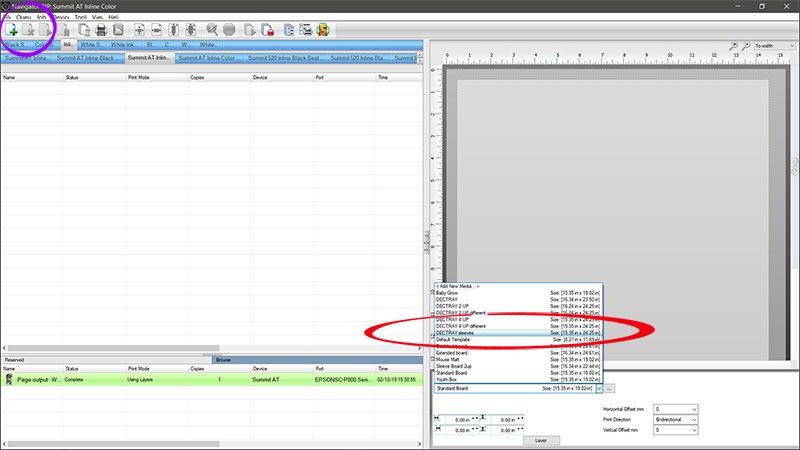

2. Select the Decoration Tray Sleeve Platen. Now click the Add File Icon

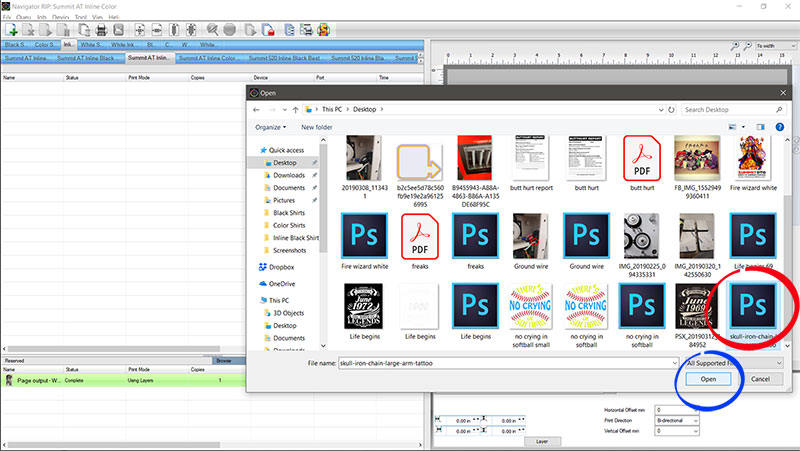

3. Now select the file you want and click Open.

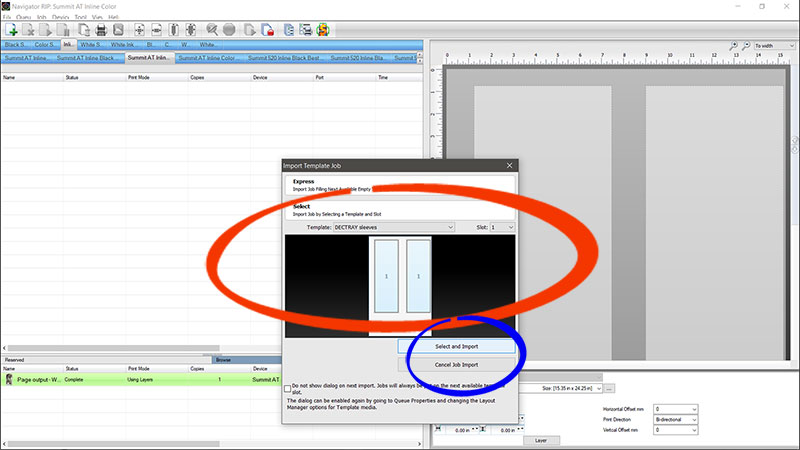

4. Make sure to select the Template that matches the Platen you selected. Then click Select and Import.

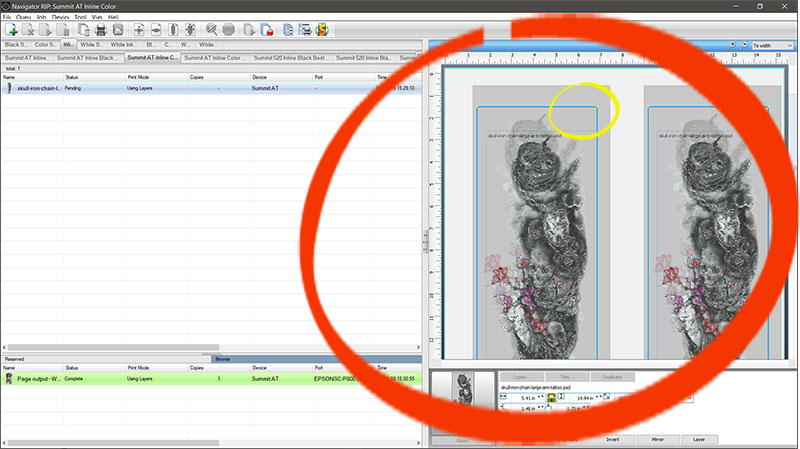

5. Now click on the image thumbnail. This will put a binding box around the image. Then click and drag one of the corner yellow nodes. This will allow you to size and position the image.

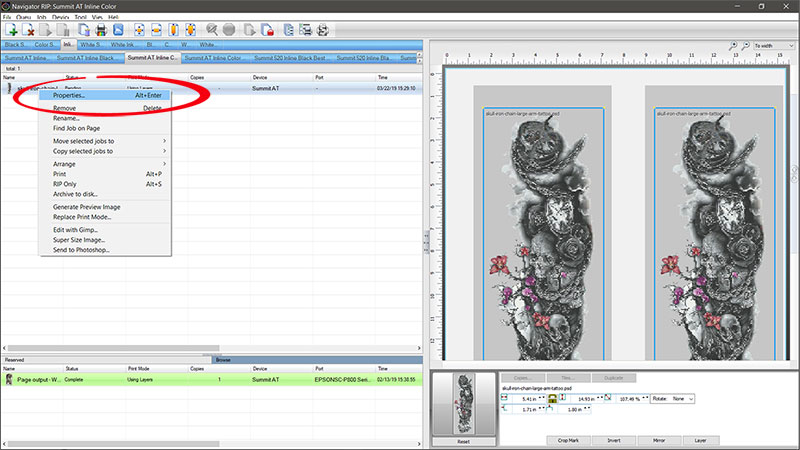

6. Right click on the name of the job and then click on Properties.

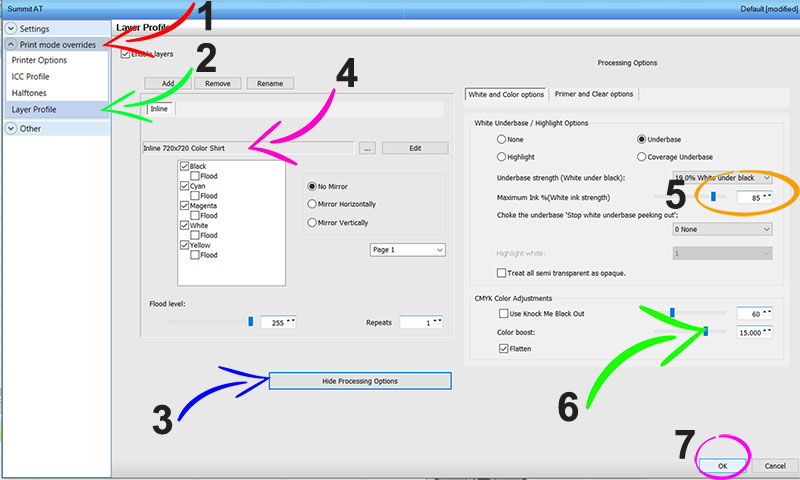

7. Now click Print Mode Overrides. Then Layer Profile. Next, at the bottom, Show Processing Options. The Resolution should be set to 720x720. Maximum White Ink % to 85. Colorboost 15. Then click OK.

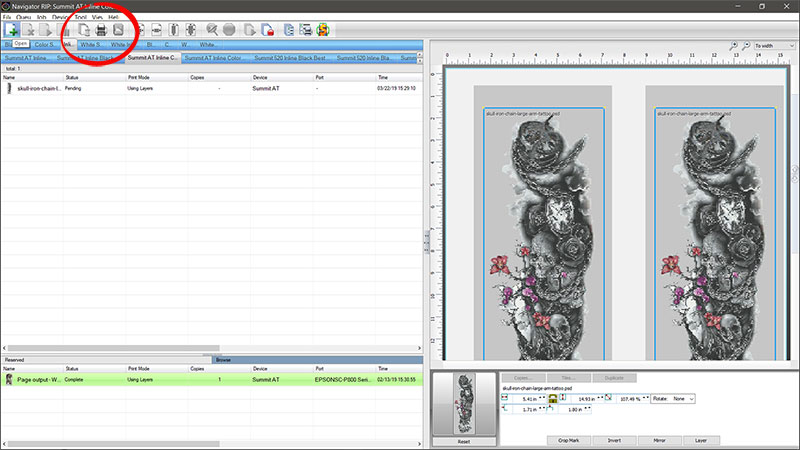

8. Last, click the Print Icon.
